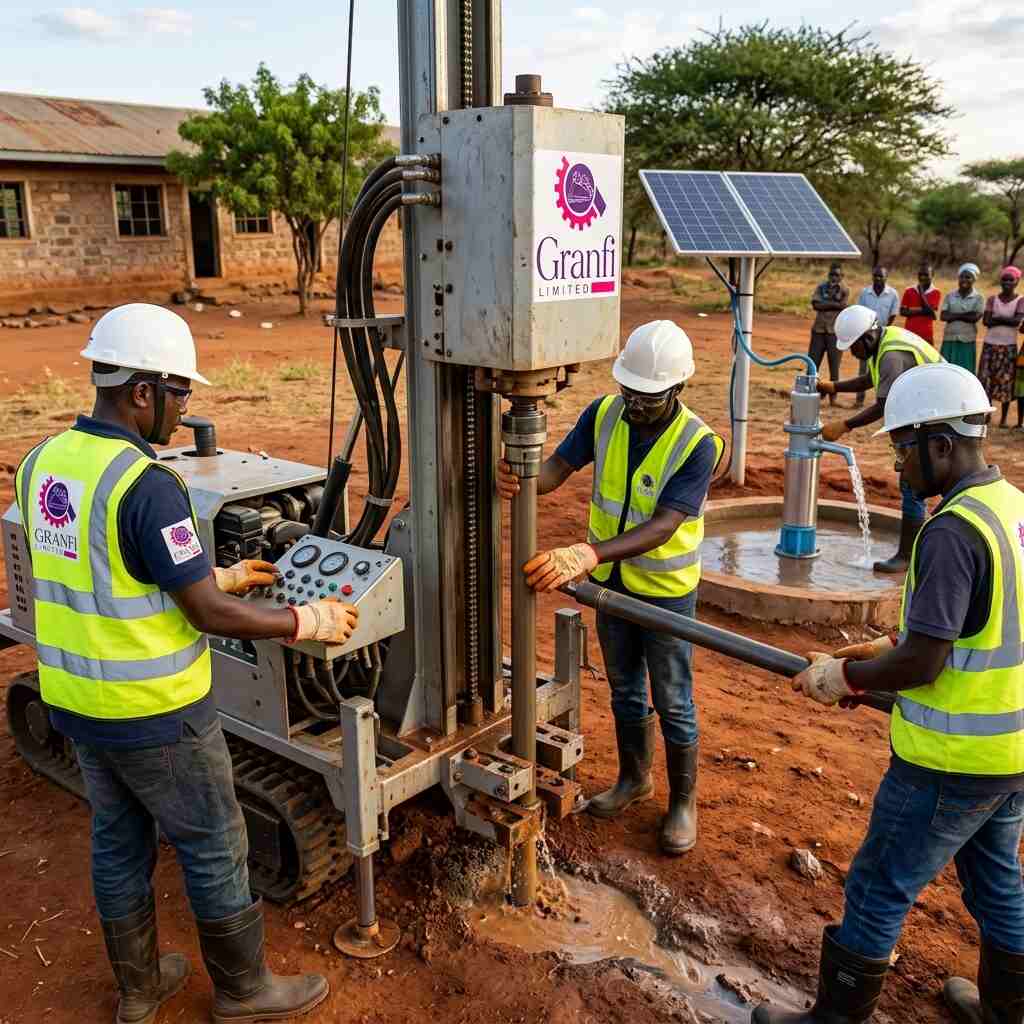

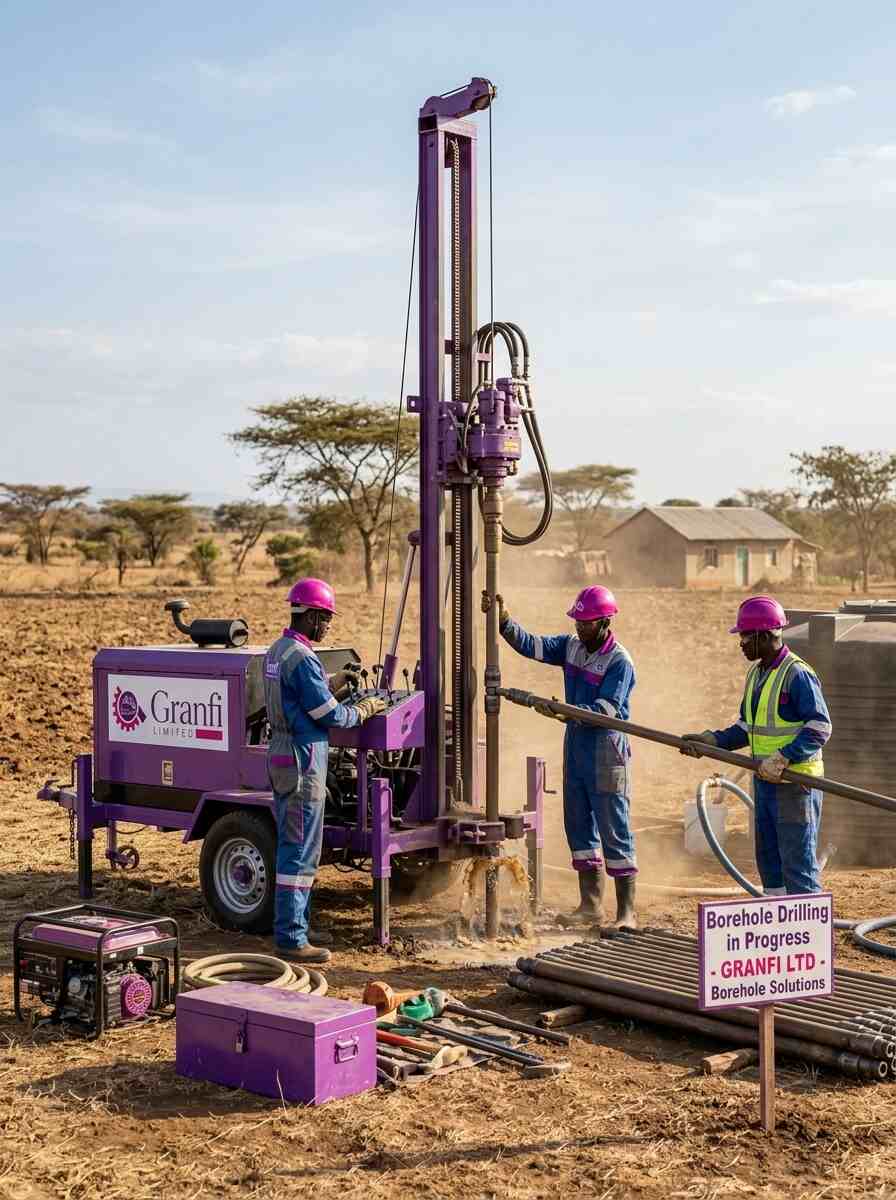

Gran100 Drilling Rig
Portable hydraulic borehole drilling rig — up to 100 m depth.
The Gran100 is a portable rig capable of drilling up to 100 m boreholes. It is hydraulic driven with a diesel engine and designed for performance where mobility and capability both matter.
Why Gran100
Performance where it matters.
Gran100 drilling rig is the best rig where performance is required. Reach us for a quotation today.
- Portable — can easily be mounted on a pickup
- Drills up to 100 m boreholes
- Hydraulic driven with a 12 hp diesel engine
- Sturdy rotary head carrying up to 2,800 kg
- Hydraulic ram with 2.5 ton pullback
- Rotary head ratio 3:1, maximum 200 rpm
- Comes with 2 m long drill rods
Technical Specifications
- Drilling depth
- Up to 100 m
- Drive type
- Hydraulic
- Engine
- Diesel, 12 hp
- Hydraulic pump
- Eaton vane pump
- Rotary head capacity
- Up to 2,800 kg
- Pullback
- 2.5 tons (hydraulic ram)
- Rotary head ratio
- 3:1
- Max rotary speed
- 200 rpm
- Drill rod length
- 2 m
- Mobility
- Mountable on a pickup
Good to know
Notes & supporting equipment
Important notes
- Mud pump or compressor is not included when buying the rig. However, arrangements can be made if either is required.
- The rotary head speed can be made higher if the rig is to be used for geotechnical works where coring is required.
- An additional fee is charged for extra accessories.
Supporting equipment
To operate effectively, the rig works with:
- Mud pump (optional — can be arranged)
- Compressor (optional — can be arranged)
- Drill rods (2 m lengths included)
Gran100 — the best rig where performance is required.
Reach us for a quotation today.
